Using the keyboard

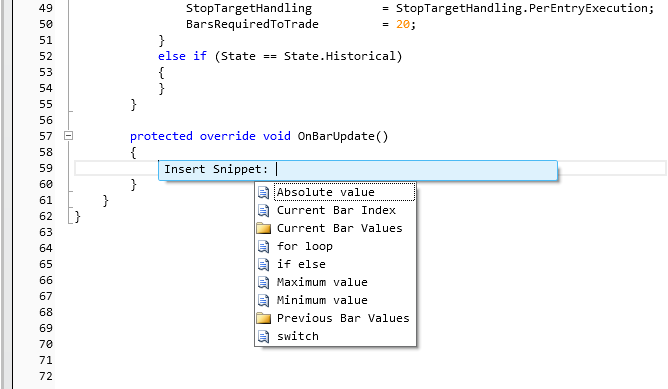

Enter the text in the left column and press the "Tab" key within the NinjaScript Editor.
Current Bar Values
cb
|
CurrentBar
|
o
|
Open[0]
|
h
|
High[0]
|
l
|
Low[0]
|
v
|
Volume[0]
|
i
|
Input[0]
|
Previous Bar Values
c1
|
Close[1]
|
o1
|
Open[1]
|
h1
|
High[1]
|
l1
|
Low[1]
|
v1
|
Volume[1]
|
i1
|
Input[1]
|
Indicator Plotting
line
|
AddLine(new Stroke(Brushes.Blue, 1), 0, "Line");
|
plot
|
AddPlot(new Stroke(Brushes.Blue, 1), PlotStyle.Line, "Plot");
|
Arithmetic
abs
|
Math.Abs(value)
|
min
|
Math.Min(value1, value2)
|
max
|
Math.Max(value1, value2)
|
Event Handler Callback Methods
account
|
protected override void OnAccountItemUpdate(Account account, AccountItem accountItem, double value)
{
}
|
trade
|
protected override void OnAddTrade(Cbi.Trade trade)
{
}
|
barschange
|
public override void OnBarsChanged()
{
}
|
minmax
|
public override void OnCalculateMinMax()
{
// It is important to set MinValue and MaxValue to the min/max Y values your drawing tool uses if you want it to support auto scale
}
|
calcperf
|
protected override void OnCalculatePerformanceValue(StrategyBase strategy)
{
}
|
connection
|
protected override void OnConnectionStatusUpdate(ConnectionStatus orderStatus, ConnectionStatus priceStatus)
{
}
|
datapoint
|
protected override void OnDataPoint(Bars bars, double open, double high,
double low, double close, DateTime time,
long volume, bool isBar, double bid, double ask)
{
}
|
execution
|
protected override void OnExecutionUpdate(Execution execution, string executionId, double price,
int quantity, MarketPosition marketPosition, string orderId, DateTime time)
{
}
|
fundamental
|
protected override void OnFundamentalData(FundamentalDataEventArgs fundamentalDataUpdate)
{
}
|
data
|
protected override void OnMarketData(MarketDataEventArgs marketDataUpdate)
{
}
|
depth
|
protected override void OnMarketDepth(MarketDepthEventArgs marketDepthUpdate)
{
}
|
mergeperf
|
protected override void OnMergePerformanceMetric(PerformanceMetricBase merge)
{
}
|
moused
|
public override void OnMouseDown(ChartControl chartControl, ChartPanel chartPanel, ChartScale chartScale, ChartAnchor dataPoint)
{
}
|
mousem
|
public override void OnMouseMove(ChartControl chartControl, ChartPanel chartPanel, ChartScale chartScale, ChartAnchor dataPoint)
{
}
|
mouseu
|
public override void OnMouseUp(ChartControl chartControl, ChartPanel chartPanel, ChartScale chartScale, ChartAnchor dataPoint)
{
}
|
optimize
|
protected override void OnOptimize()
{
}
|
ordert
|
protected override void OnOrderTrace(DateTime timestamp, string message)
{
}
|
orderu
|
protected override void OnOrderUpdate(Order order, double limitPrice, double stopPrice,
int quantity, int filled, double averageFillPrice,
OrderState orderState, DateTime time, ErrorCode error,
string nativeError)
{
}
|
position
|
protected override void OnPositionUpdate(Position position, double averagePrice, int quantity, MarketPosition marketPosition)
{
}
|
render
|
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
{
}
|
windowc
|
protected override void OnWindowCreated(Window window)
{
}
|
windowd
|
protected override void OnWindowDestroyed(Window window)
{
}
|
Control Statements
if
|
if (expression)
{
}
else
{
}
|
for
|
for (int index = 0; index < count; index++)
{
}
|
switch
|
switch (expression)
{
case value1:
break;
case value2:
break;
default:
break;
}
|
Drawing
Shortcut
|
Method Signature
|
dap
|
Draw.AndrewsPitchfork(this, "MyAndrewsPitchfork", false, 10, Close[10], 5,
High[5], 0, Low[5], Brushes.Blue, DashStyleHelper.Solid, 1);
|
da
|
Draw.Arc(this, "MyDrawArc", false, 10, Close[10], 0,
Close[0], Brushes.LimeGreen, DashStyleHelper.Dot, 2);
|
dd
|
Draw.ArrowDown(this, "MyArrowDown", false, 0, High[0], Brushes.Red);
|
du
|
Draw.ArrowUp(this, "MyArrowUp", false, 0, Low[0], Brushes.Red);
|
ddi
|
Draw.Diamond(this, "MyDiamond", false, 0, High[0] + 2 * TickSize, Brushes.Blue);
|
dt
|
Draw.Dot(this, "MyDot", false, 0, High[0] + 2 * TickSize, Brushes.Blue);
|
de
|
Draw.Ellipse(this, "MyEllipse", 10, Low[10], 0, High[0], Brushes.Blue);
|
di
|
Draw.ExtendedLine(this, "MyExtendedLine", 10, Close[10], 0, Close[0], Brushes.Blue);
|
dfc
|
Draw.FibonacciCircle(this, "MyFibonacciCircle", true, 10, Close[10], 0, Close[0]);
|
dfe
|
Draw.FibonacciExtensions(this, "MyFibonacciExtensions", true, 15, Close[15],
10, Close[10], 5, Close[5]);
|
dfr
|
Draw.FibonacciRetracements(this, "MyFibonacciRetracements", false, 10, Close[10], 0, Close[0]);
|
dft
|
Draw.FibonacciTimeExtensions(this, "MyFibonacciTimeExtensions", false, 10, Close[10], 0, Close[0]);
|
dg
|
Draw.GannFan(this, "MyGannFan", true, 10, Close[10]);
|
dh
|
Draw.HorizontalLine(this, "MyHorizontalLine", Close[0], Brushes.Blue);
|
dl
|
Draw.Line(this, "MyLine", 10, Close[10], 0, Close[0], Brushes.Blue);
|
dy
|
Draw.Ray(this, "MyRay", 10, Close[10], 0, Close[0], Brushes.Blue);
|
dr
|
Draw.Rectangle(this, "MyRectangle", 10, Low[10], 0, High[0], Brushes.Blue);
|
dre
|
Draw.Region(this, "MyRegion", CurrentBar, 0, Bollinger(2, 14).Upper,
Bollinger(2, 14).Lower, Brushes.Green, Brushes.Blue, 50);
|
drx
|
Draw.RegionHighlightX(this, "MyRegionHighlightX", 10, 0, Brushes.Blue);
|
dry
|
Draw.RegionHighlightY(this, "MyRegionHighlightY", High[0], Low[0], Brushes.Blue, Brushes.Green, 20);
|
drr
|
Draw.RiskReward(this, "MyRiskReward", false, 0, High[0], 10, Low[0], 2, true);
|
dru
|
Draw.Ruler(this, "tag1", true, 4, Low[4], 3, High[3], 1, Low[1]);
|
ds
|
Draw.Square(this, "MySquare", false, 0, High[0] + 2 * TickSize, Brushes.Blue);
|
dx
|
Draw.Text(this, "MyText", "Sample text ", 0, High[0] + 2 * TickSize, Brushes.Blue);
|
dxf
|
Draw.TextFixed(this, "MyTextFixed", "Text to draw", TextPosition.TopRight);
|
dtc
|
Draw.TrendChannel(this, "TrendChannel", true, 10, Low[10], 0, High[0], 10, High[10] + 5 * TickSize);
|
dtd
|
Draw.TriangleDown(this, "MyTriangleDown", false, 0, High[0] + 2 * TickSize, Brushes.Red);
|
dtu
|
Draw.TriangleUp(this, "MyTriangleUp", false, 0, Low[0] - 2 * TickSize, Brushes.Blue);
|
dv
|
Draw.VerticalLine(this, "MyVerticalLine", 0, Brushes.Blue);
|
|
Understanding Code Snippet shortcuts
