Operations > Windows

Adding Tabs

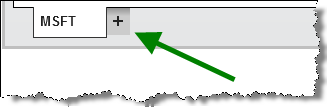

Pressing the + tab will create a new Time & Sales tab in this window.

Tabs_Add

Note: With the Time & Sales window selected you may also start typing "++" followed by the instrument symbol into the Overlay Instrument Selector to quickly create a new tab with that instrument preselected. Example: "++MSFT"

Removing Tabs

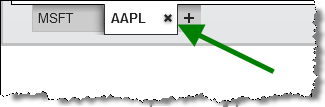

Moving your mouse over the tab handle and selecting the x icon to remove that specific tab.

Tabs_RemoveIcon

Note: You cannot remove the last remaining tab as you must have at least one tab per window.

Reordering Tabs

Click and hold to drag the tab into the desired position in the tab area.

Right Click Menu

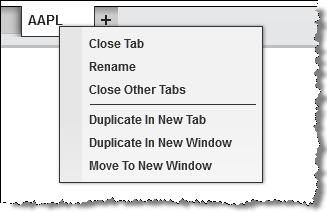

Right mouse click on the tab to access the right click menu to perform a tab action.

Tabs_ContextMenu

Close Tab	Removed the selected tab
Rename	Opens the properties window with the tab name property selected for direct editing
Close Other Tabs	Removed all tabs except for the selected tab
Duplicate In New Tab	Duplicates the selected tab into a new tab in the same window
Duplicate In New Window	Duplicates the selected tab into a new tab in a new window
Move To New Window	Moves the selected tab into a new window

Duplicate Window

Right mouse click on the title bar of a window and selecting Duplicate Window will duplicate the window, including it's tabs.

DuplicateWindow

Using Tab Name Variables

Tabs throughout NinjaTrader allow for the use of pre-defined variables which will dynamically populate tab names with relevant labels, such as the instrument name, period, or account selected in the tab. To use one of the variables listed in the table below, first open the window's Properties dialogue, then enter your chosen variable in the "Tab Name" field.

TabVariables1

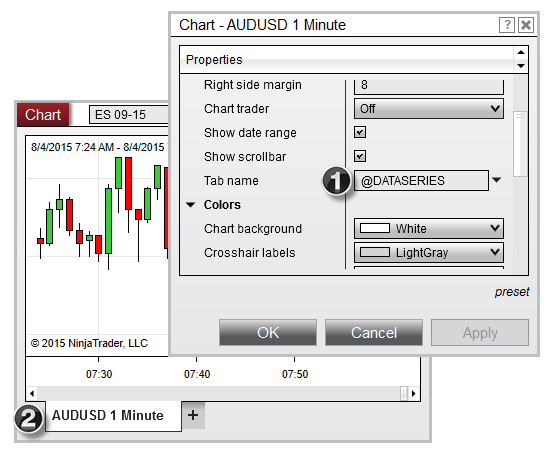

1) The variable "@DATASERIES" has been entered in the "Tab Name" field of the Chart Properties window.

2) The "@DATASERIES" variable populates the instrument full name and period in the selected tab.

Notes:

•These variables are case sensitive, meaning that "@instrument" is not the same as "@INSTRUMENT."

•More than one variable can be used together in a single tab name. For example, using "@FUNCTION @ACCOUNT" would list the tab's function and selected account together.

Variable	Value	Applicable To
@INSTRUMENT	Displays the name of the primary instrument displayed in the tab	Level II, Time & Sales, Basic Entry, FX Board, FX Pro, SuperDOM, Order Ticket, Charts
@INSTRUMENT_FULL	Displays the full name of the primary instrument displayed in the tab (adds the expiry for futures contracts)	Level II, Time & Sales, Basic Entry, FX Board, FX Pro, SuperDOM, Order Ticket, Charts
@INSTRUMENT_ALL	Displays the names of all instruments displayed in the tab	FX Board, Charts
@INSTRUMENT_FULL_ALL	Displays the full name of all the instruments displayed in the tab (adds the expiry for futures contracts)	FX Board, Charts
@PERIOD	Displays the period configured on the primary instrument in the tab	Charts
@PERIOD_ALL	Displays the periods configured for all instruments in the tab	Charts
@ACCOUNT	Displays the account selected in the tab	Control Center (Account, Executions, Orders, Positions, Strategies Grids), Basic Entry, FX Board, FX Pro, SuperDOM, Order Ticket, Charts
@FUNCTION	Displays the function of the tab (examples: "Chart" or "Log")	All Tabs
@ATM	Displays the selected ATM Strategy in the tab	Charts
@DATASERIES	Equivalent to "@INSTRUMENT_FULL @PERIOD" for the primary instrument in the tab	Charts
@DATASERIES_ALL	Equivalent to "@INSTRUMENT_FULL @PERIOD" for all instruments in the tab	Charts

Switching Tabs

You can switch between tabs by clicking on the desired tab or by pressing CTRL+Tab on your keyboard.
