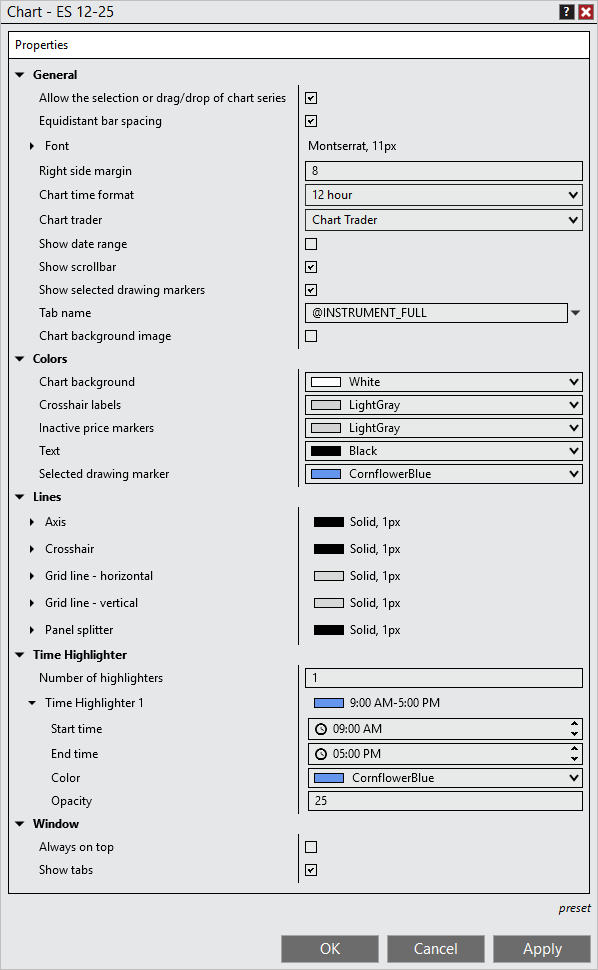

General

Allow the selection or drag/drop of chart series

Enables or disables the selection of Data Series and indicators for drag and drop

Equidistant bar spacing

Enables or disables plotting bars an equal distance from each other. Please see the "Working with Multiple Data Series" section of the Help Guide for more information.

Font

Sets the font display properties for the chart

Right side margin

Sets the spacing between the Y-axis and the current bar in pixels

Chart trader

Sets the chart trader display mode.

Show date range

Enables or disables showing the date range label in to the top left of chart. The date range reported are the dates that are currently visible in the chart.

Show scrollbar

Enables or disables showing the horizontal chart scroll bar

Tab name

Sets the name displayed in the tab. By default the instrument name is displayed.

Chart background image

Enables or disables the option to use an image as the background for the chart

Color

Chart background

Sets the chart background color

Crosshair label

Sets the color for the cross hair label

Inactive price markers

Price markers display the current price of bars and indicators on the Y-axis. When looking at the current bar, the price markers will take the color of the data series. When scrolling back through historical bar data, the markers are inactive (not real-time) and will be displayed by the color set on this property

Text

Sets the font display properties for the chart

Lines

Axis

Sets the drawing properties for both the vertical and horizontal chart axis

Crosshair

Sets the drawing properties of the crosshair

Grid line - horizontal

Sets the drawing properties of the horizontal grid lines

Grid line - vertical

Sets the drawing properties of vertical grid lines

Panel splitter

Sets the drawing properties of the splitter drawn between panels.

Window

Always on top

Sets if the window will be always on top of other windows.
